This product is a glass syringe type medicine container.This is a double chamber type pre-filled syringe. It can be filled with powder medicine and solution, and dissolve them just before administration.
CAPACITY（mL）
LENGTH（mm）
OD（mm）
ID（mm）
TIP SHAPE
3
84.8
10.85
8.65
Lure
3
75.0
12.0
9.6
Cartridge
5
77.9
14.85
12.45
Lure
5
66.0
14.85
12.45
Cartridge
10
85.0
20.0
18.0
Cartridge
Principle and Operation method
Generally,double-chamber-syringe is filled with freeze-dry agent in front chamber (tip side)and solution,such as water for injection, in back chamber (plunger rod side).When using, two agents are mixed through by-pass and prepared for injection.

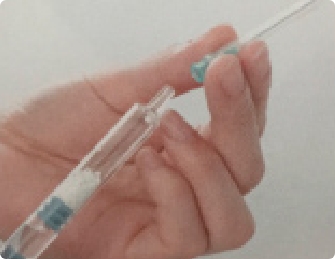

Step1 Remove point protector and fix needle securely

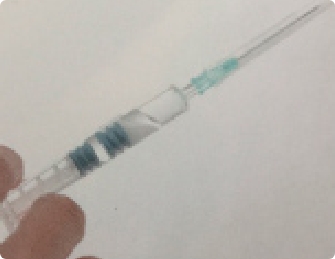

Step2 Push the plunger rod and syringe rubber plunger.
Step3 Solution will flow into front chamber from back chamber through by-pass.

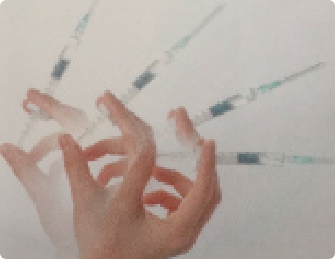

Step4 Solution and freeze-dry agent will be dissolved and mixed.
Step1 Remove point protector and fix needle securely
Step2 Push the plunger rod and syringe rubber plunger.
Step3 Solution will flow into front chamber from back chamber through by-pass.
Step4 Solution and freeze-dry agent will be dissolved and mixed.
Step5 Confirm two agents will be mixed completly.
